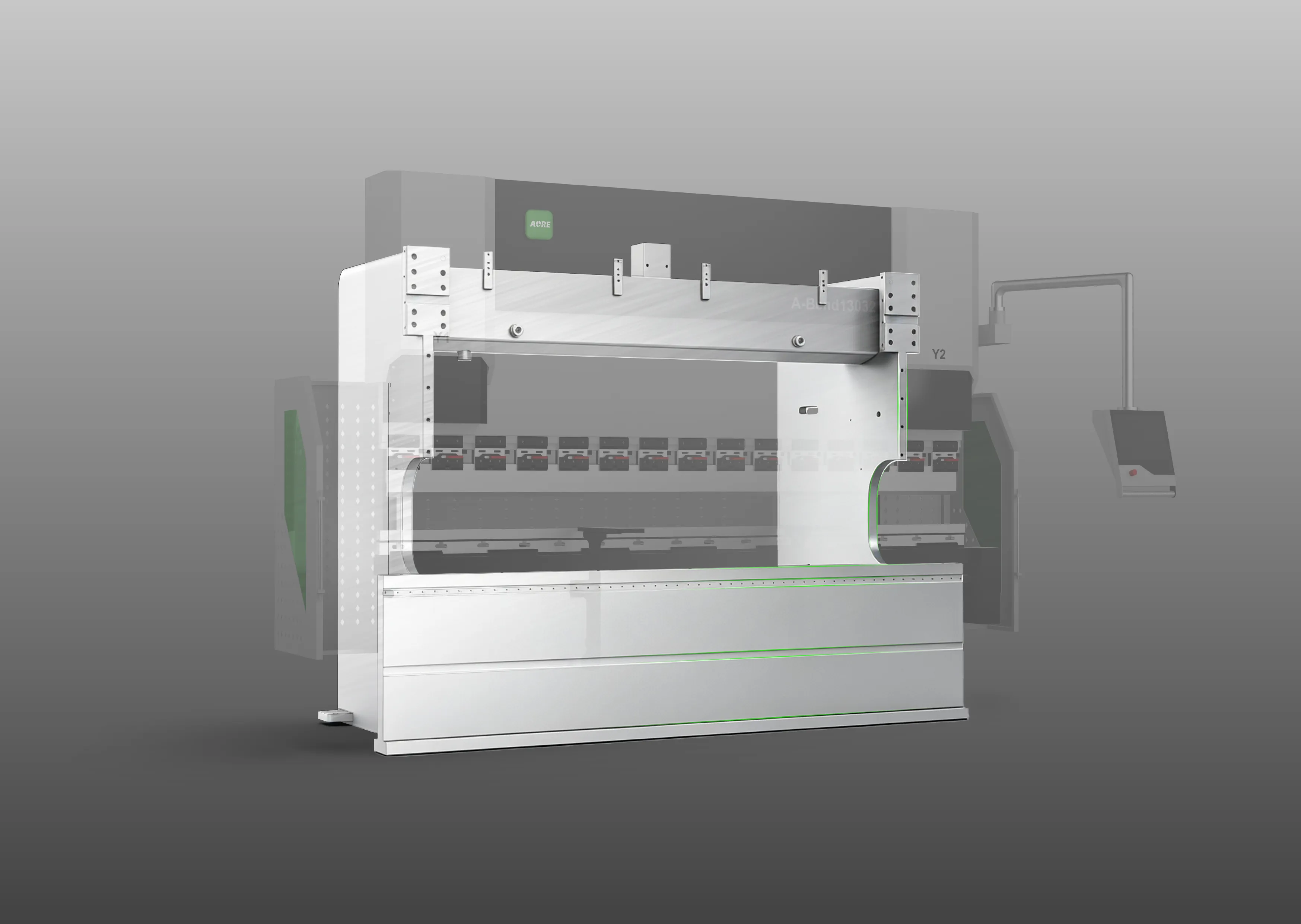

Constructed with a high-strength interlocking welded frame, the machine delivers exceptional rigidity and outstanding resistance to deformation. Key structural components are digitally optimized to ensure balanced stress distribution throughout the frame, providing superior structural stability and maintaining long-term bending accuracy.

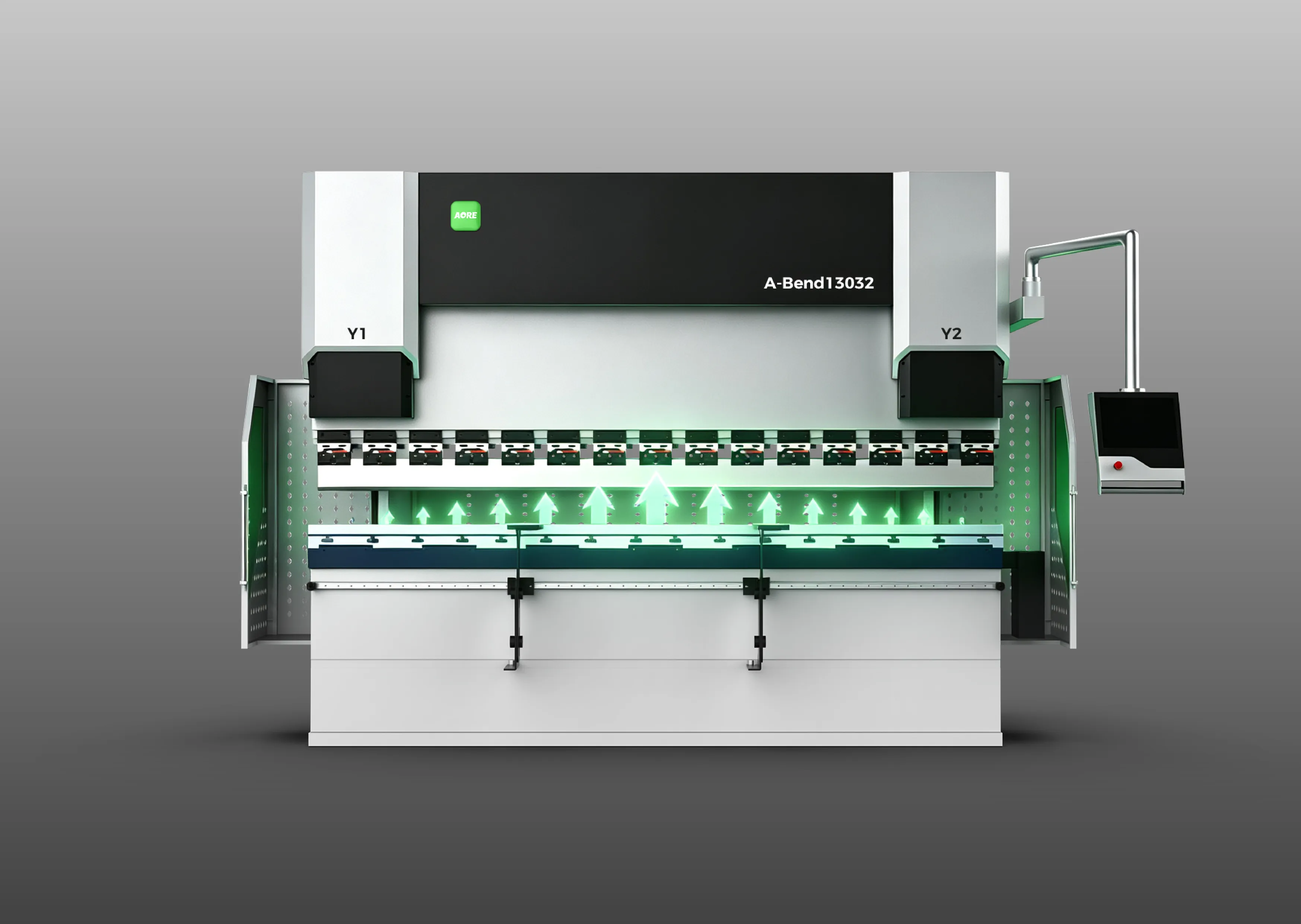

The machine is equipped with a precision-machined and heat-treated wedge-type mechanical crowning system. Based on the loading conditions of the workpiece, the CNC system automatically calculates the required compensation and adjusts the deflection of the upper and lower beams in real time, ensuring uniform bending accuracy over the entire working length.

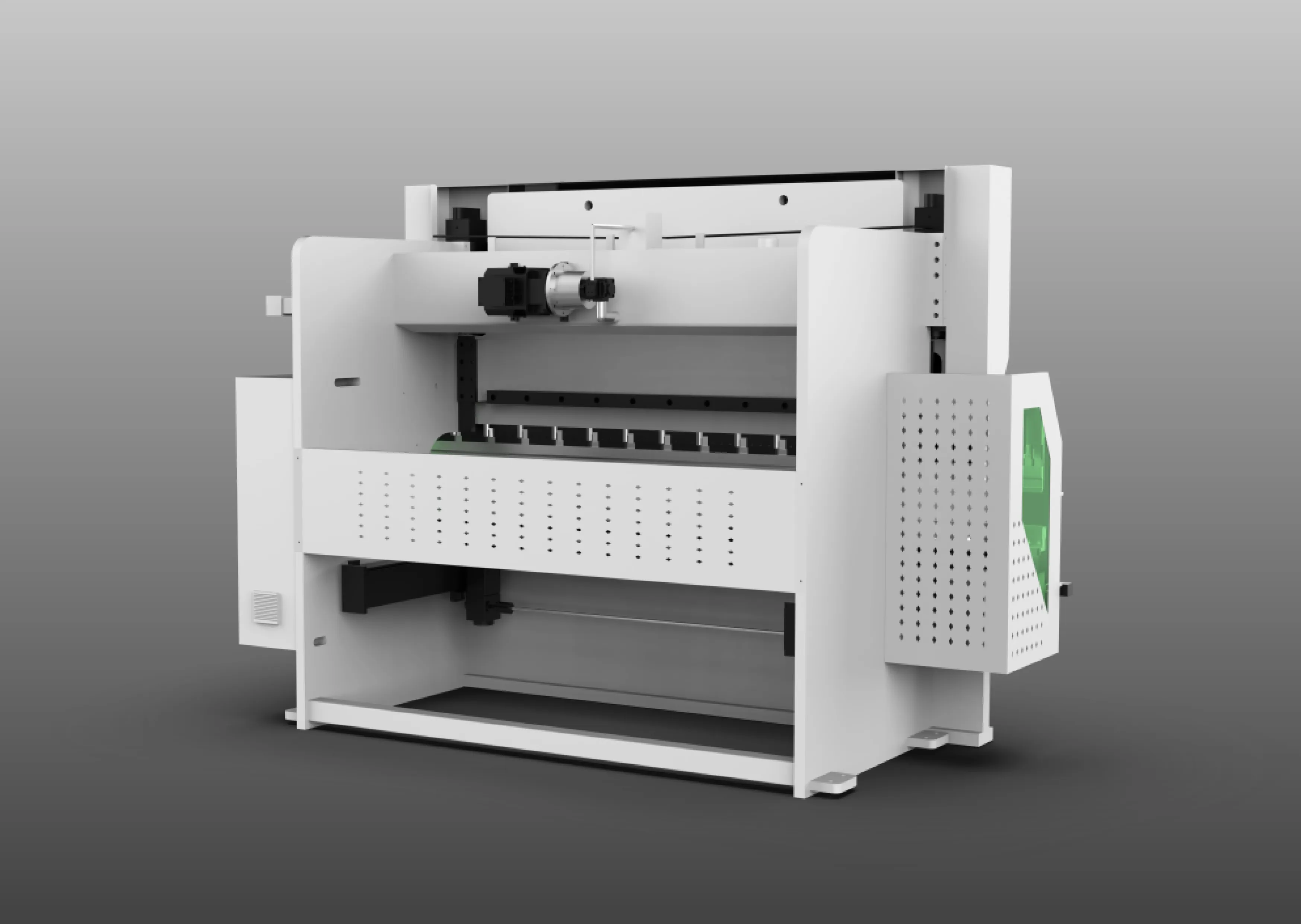

A comprehensive rear safety guarding system effectively isolates hazardous areas and prevents personnel from entering the machine's operating zone during operation. Designed to meet modern industrial safety standards, it enhances operator protection and helps create a safer and more reliable working environment.

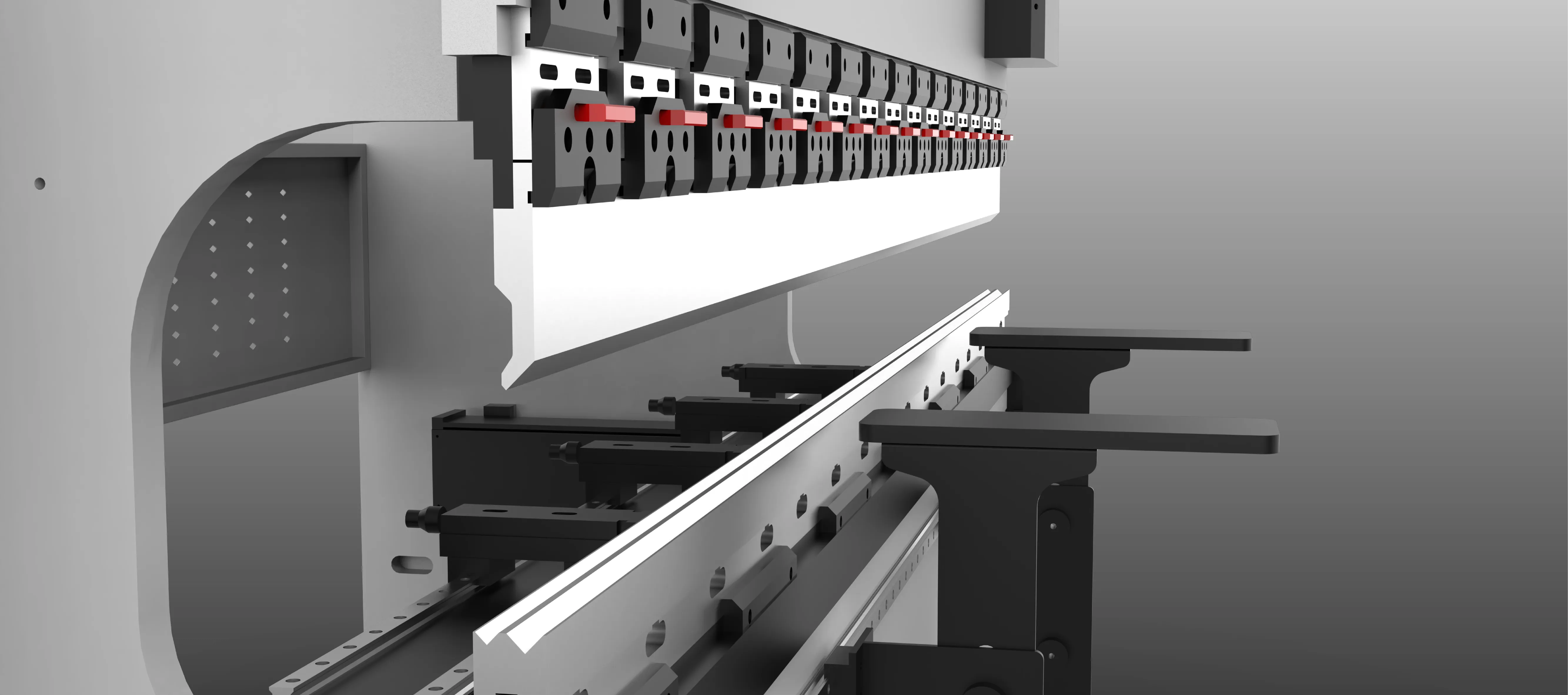

The front support arms feature a roller and linear guide design, allowing smooth positioning and easy adjustment to accommodate different workpiece sizes. Both horizontal and vertical adjustments are available, enabling quick support positioning according to sheet dimensions and improving operating convenience and efficiency.

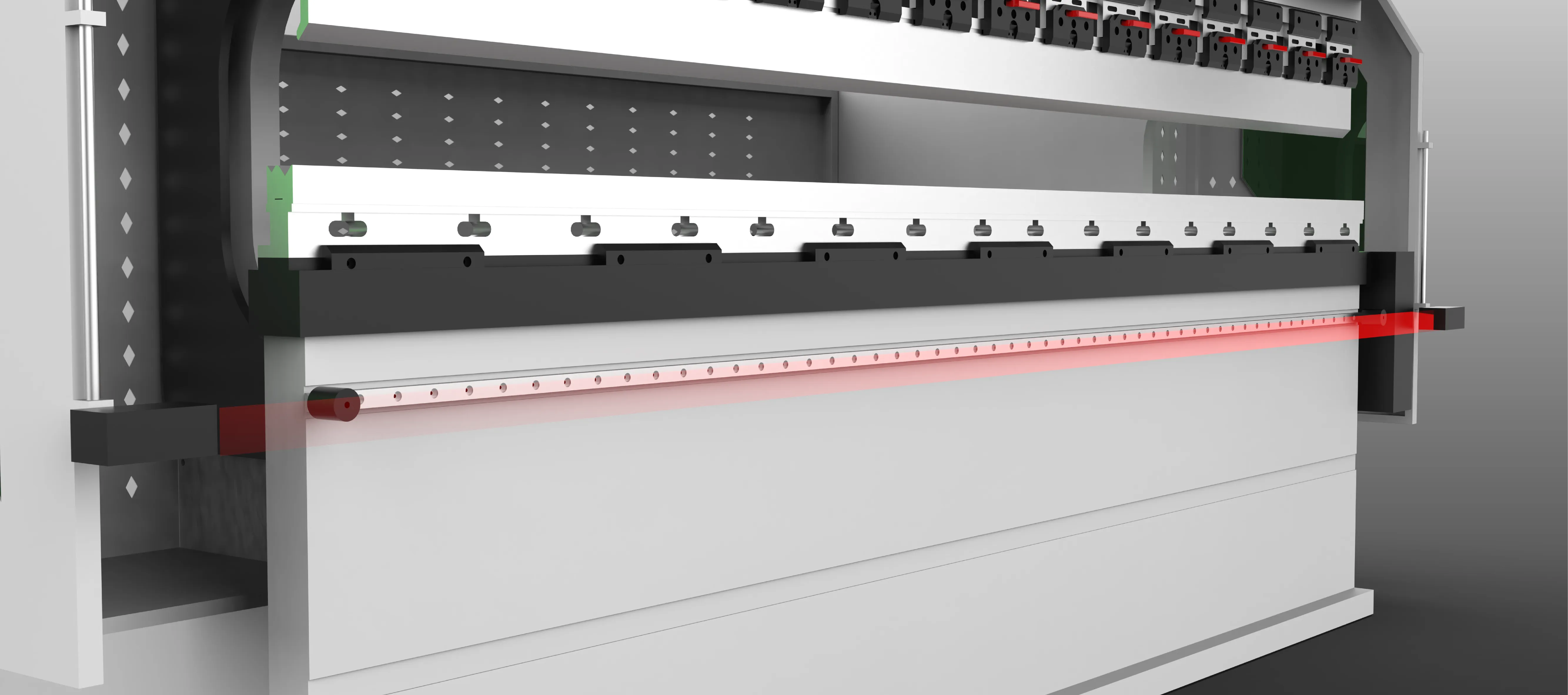

An optional laser safety light curtain safeguards the entire bending area. When the operator's hands or any part of the body enter the designated safety zone, the machine immediately stops operation, effectively preventing pinch and crush injuries while ensuring a safer working environment.

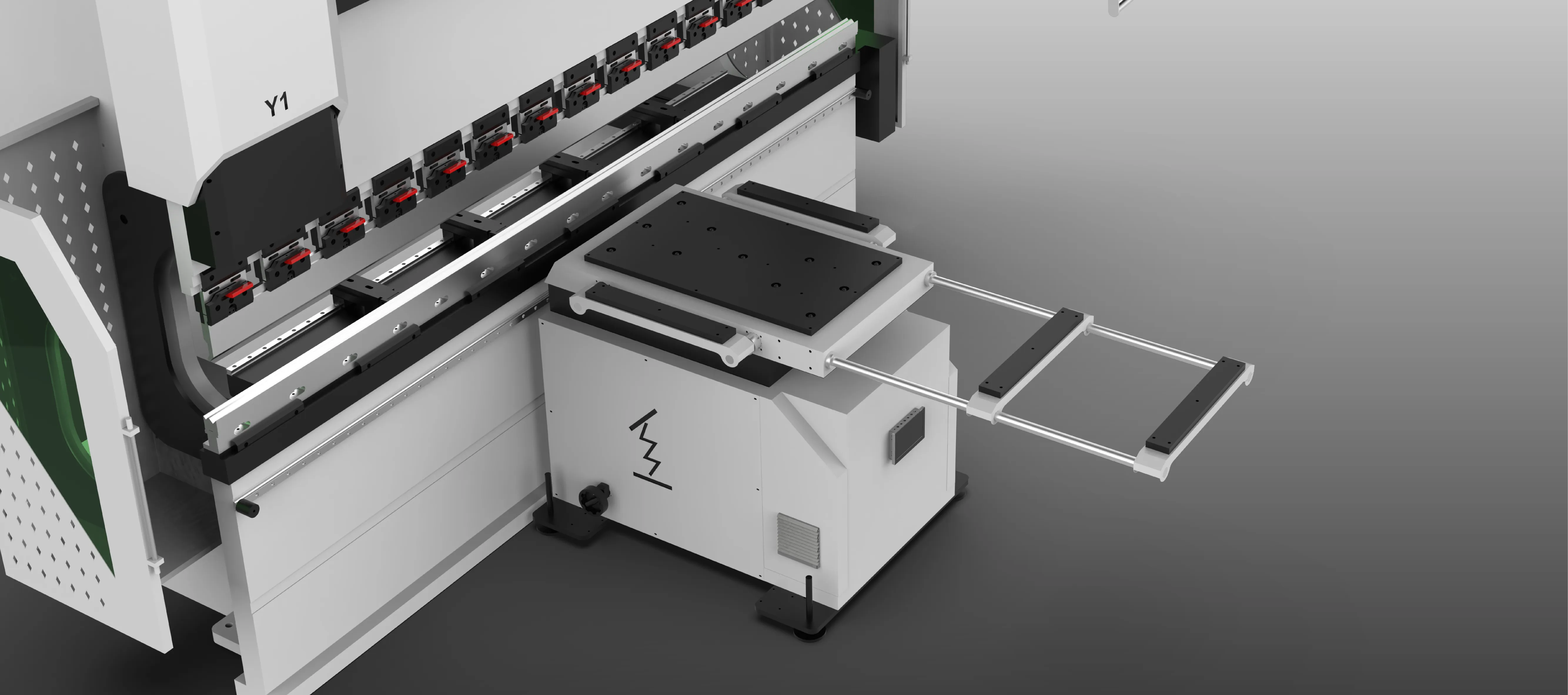

During the bending process, the follow-up support system moves synchronously with the workpiece to provide continuous dynamic support. This effectively prevents sheet sagging and deformation caused by its own weight, minimizes manual handling, and significantly improves processing efficiency.

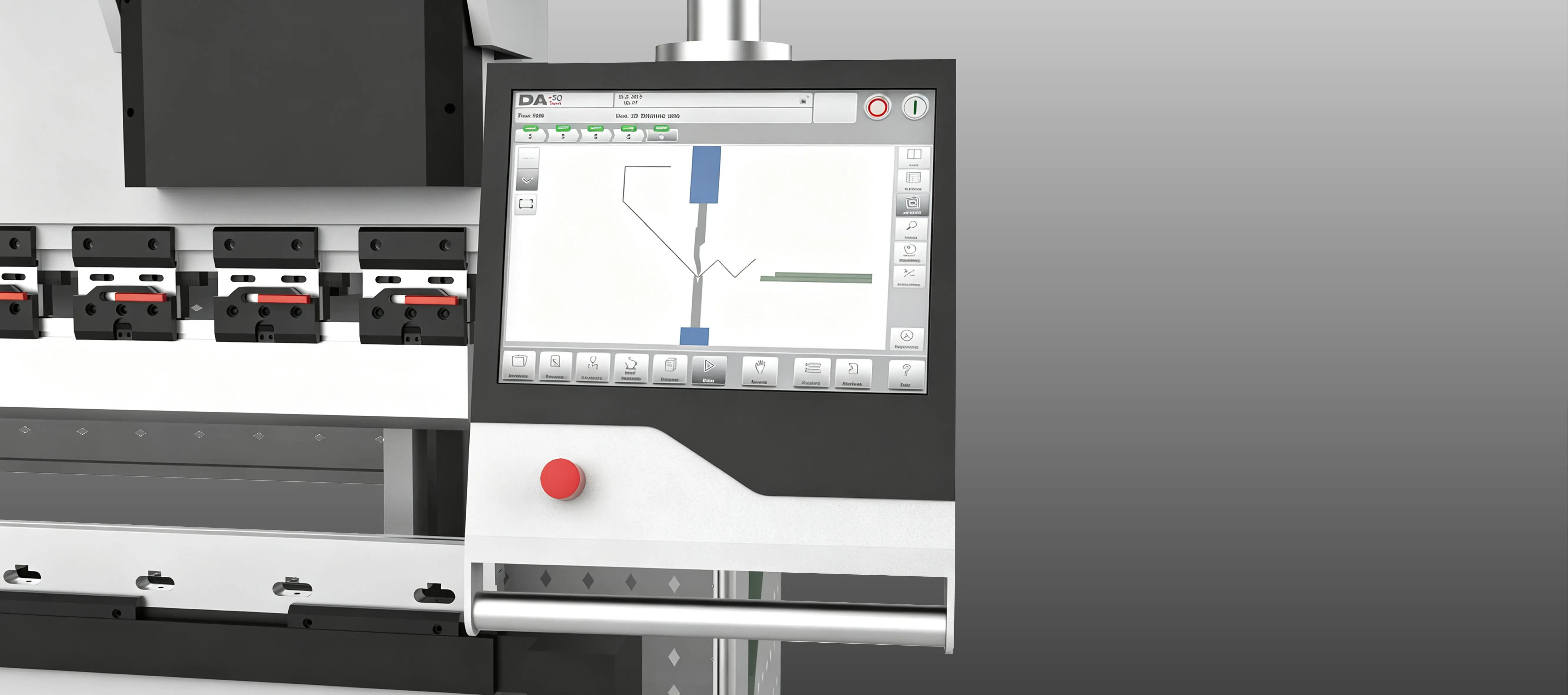

Featuring an internationally recognized CNC control system, the machine provides an advanced, integrated, and multifunctional control platform for efficient and precise bending operations. Its intuitive interface and intelligent functions simplify operation while maximizing productivity and bending accuracy.
Constructed with a high-strength interlocking welded frame, the machine delivers exceptional rigidity and outstanding resistance to deformation. Key structural components are digitally optimized to ensure balanced stress distribution throughout the frame, providing superior structural stability and maintaining long-term bending accuracy.
The machine is equipped with a precision-machined and heat-treated wedge-type mechanical crowning system. Based on the loading conditions of the workpiece, the CNC system automatically calculates the required compensation and adjusts the deflection of the upper and lower beams in real time, ensuring uniform bending accuracy over the entire working length.
A comprehensive rear safety guarding system effectively isolates hazardous areas and prevents personnel from entering the machine's operating zone during operation. Designed to meet modern industrial safety standards, it enhances operator protection and helps create a safer and more reliable working environment.
The front support arms feature a roller and linear guide design, allowing smooth positioning and easy adjustment to accommodate different workpiece sizes. Both horizontal and vertical adjustments are available, enabling quick support positioning according to sheet dimensions and improving operating convenience and efficiency.
An optional laser safety light curtain safeguards the entire bending area. When the operator's hands or any part of the body enter the designated safety zone, the machine immediately stops operation, effectively preventing pinch and crush injuries while ensuring a safer working environment.
During the bending process, the follow-up support system moves synchronously with the workpiece to provide continuous dynamic support. This effectively prevents sheet sagging and deformation caused by its own weight, minimizes manual handling, and significantly improves processing efficiency.
Featuring an internationally recognized CNC control system, the machine provides an advanced, integrated, and multifunctional control platform for efficient and precise bending operations. Its intuitive interface and intelligent functions simplify operation while maximizing productivity and bending accuracy.
Powering Manufacturing Excellence Across Industries From high-precision cutting to intelligent automation, we support global manufactures to solve real-world challenges, improve production efficiency, and unlock values.
Powering Manufacturing Excellence Across Industries From high-precision cutting to intelligent automation, we support global manufactures to solve real-world challenges, improve production efficiency, and unlock values.
Automotive Component
Construction Machinery
Elevator Manufacturing
Sheet Metal Processing
| Model | A-Bend 10032 | A-Bend 13032 | A-Bend 17032 | A-Bend 20032 | A-Bend 25032 | A-Bend 32032 |
|---|---|---|---|---|---|---|
| Press force | 1000KN | 1300KN | 1700KN | 2000KN | 2500KN | 3200KN |
| Bending length | 3200mm | 3200mm | 3200mm | 3200mm | 3200mm | 3200mm |
| Width between columns | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm |
| Throat depth | 400mm | 400mm | 400mm | 400mm | 400mm | 400mm |
| Slider travel | 200mm | 200mm | 200mm | 200mm | 250mm | 250mm |
| Opening height (D) | 480mm | 480mm | 480mm | 480mm | 500mm | 500mm |
