Achieves up to 50%- 80% Higher Efficiency
Cutting speed increased by up to 80%, significantly enhancing processing efficiency and production capacity.

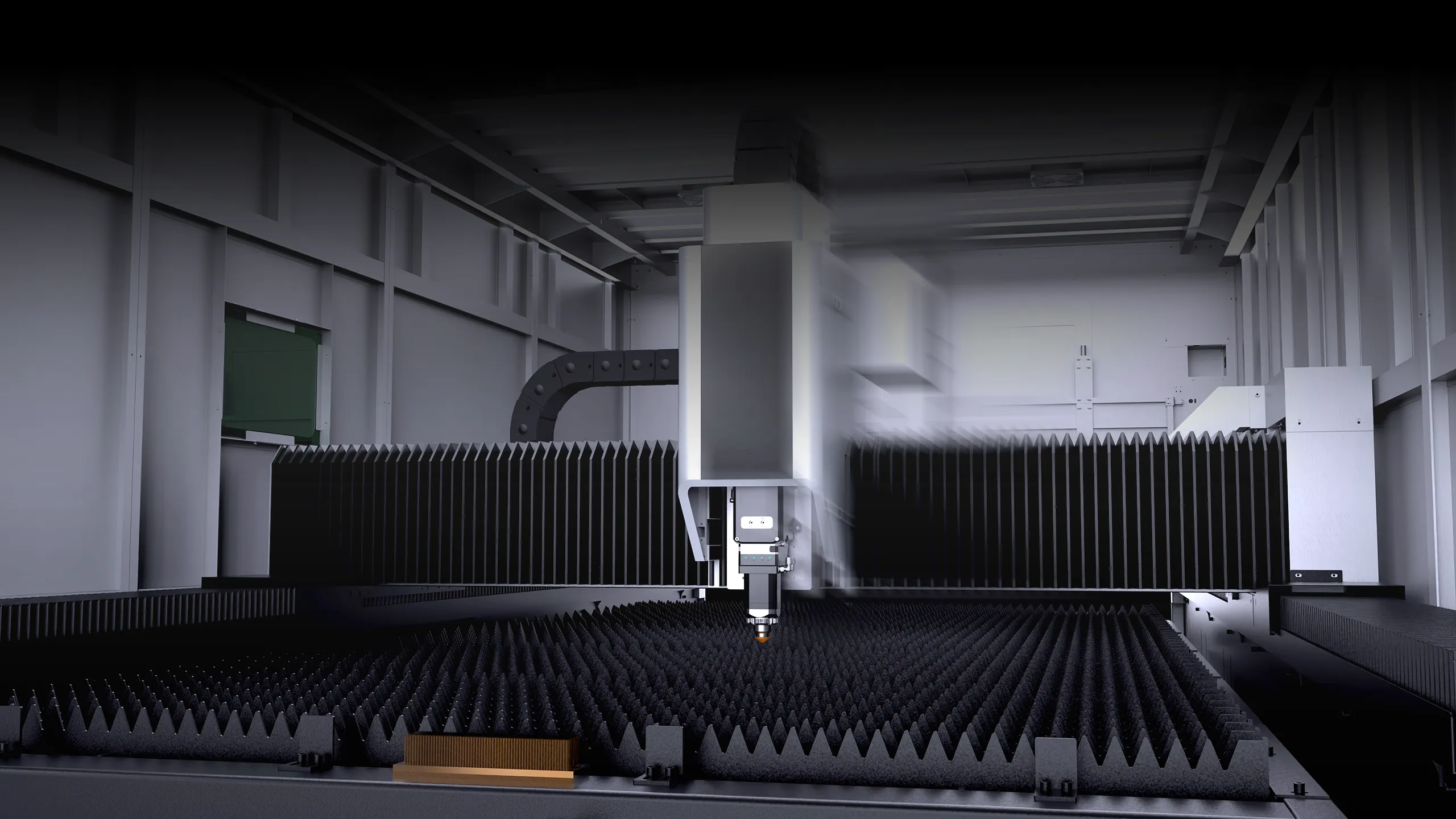

Low-Gravity Design for Fast and Stable Cutting
Designed with a low center of gravity, the machine ensures exceptional stability under heavy loads, guaranteeing smooth and reliable sheet cutting.
Lightweight Design, Speed Upgraded
Equipped with a high-strength, lightweight aluminum alloy beam, the system reduces motion inertia and enhances dynamic responsiveness, achieving both high speed and energy saving.
Follow-up Zoned Dust Removal
The zoned dust collection system achieves dust removal efficiency of ≥95%, effectively improving the cutting environment.

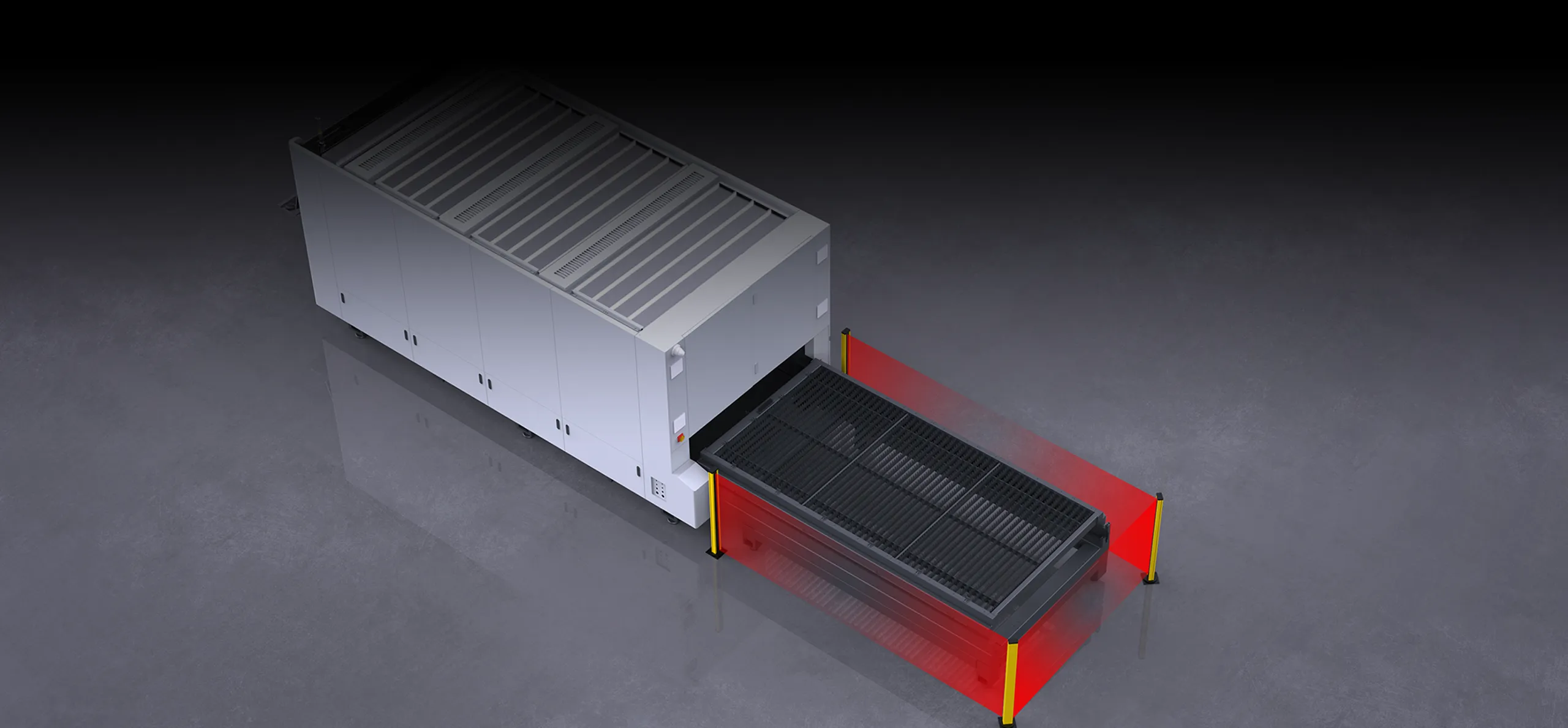

Intelligent Safety Light Curtain (Optional)
The intelligent safety light curtain system provides seamless, real-time protective sensing with no blind spots, fully safeguarding operators and equipment to ensure zero-risk production.

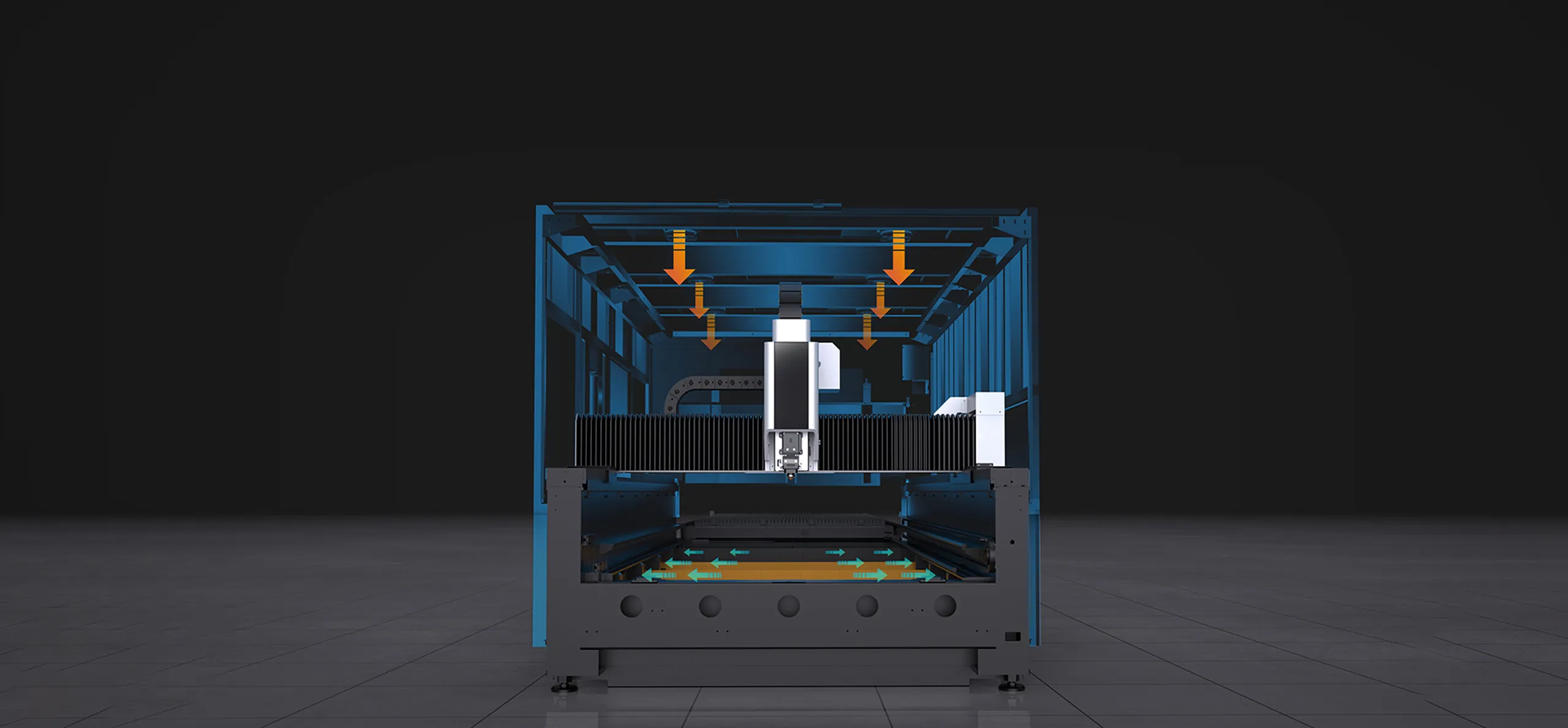

Clean Enclosed Downforce Dust Collection (Optional)
Equipped with an enclosed downforce blower, it effectively captures dust and smoke, optimizing the cutting area environment.
Applications
Sheet Metal Fabrication
Metal Furniture Production
Construction Machinery Parts
Electrical Cabinets & Enclosures
Steel Structure
Technical Parameters
| Model | PU3015 | PU3216 |
|---|---|---|
| Power | 3-12kW | 3-12kW |
| Processing Format | 3100*1550mm | 3200*1600mm |
| Maximum Speed | 180m/min | 180m/min |
| Maximum Acceleration | 2G | 2G |
| Positioning Accuracy | ±0.03mm | ±0.03mm |
