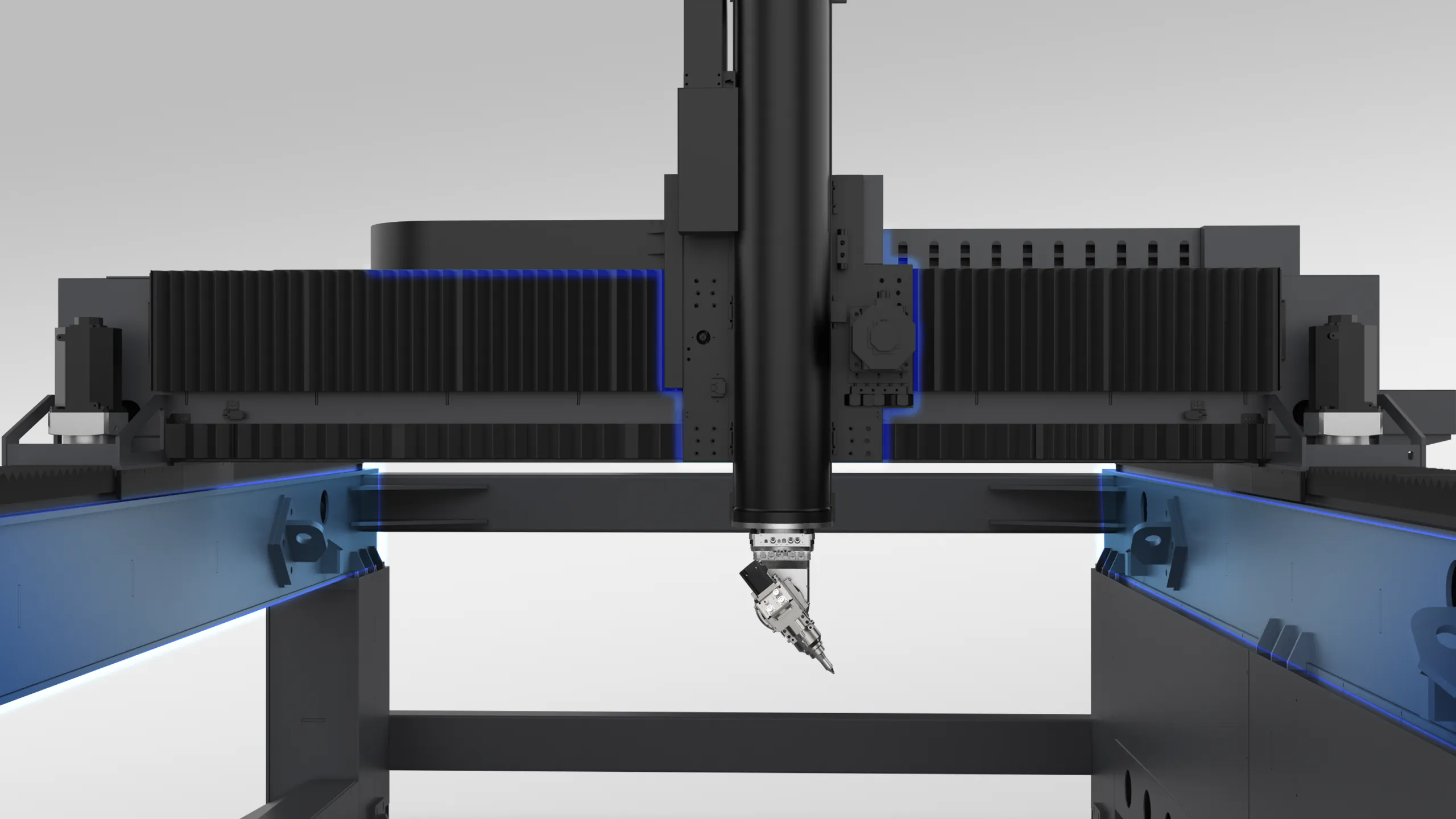

High-Rigidity Machine Bed, Exceptional Dynamic Performance
Designed with an overhead gantry structure and a main body integrally welded from high-strength steel plates, this machine significantly enhances overall rigidity and dynamic stability, providing a solid foundation for high-load processing.

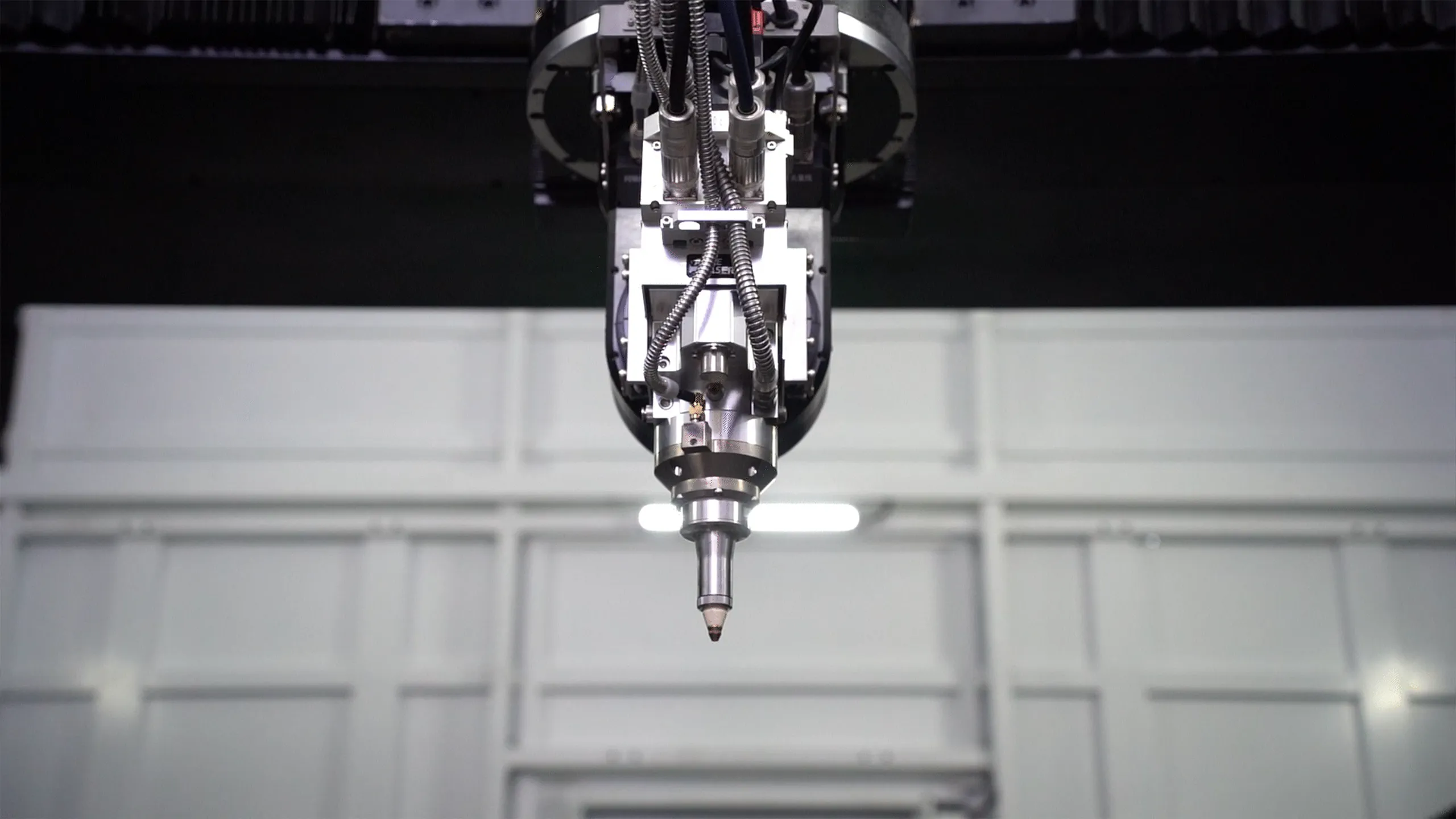

5-Axis Simultaneous Cutting, Flexible and Efficient
Equipped with a high-speed, high-precision 3D built-in optical path cutting head, it supports 5-axis simultaneous movement. The laser head can rotate infinitely at 360° and achieve ±135° bidirectional swinging, easily handling efficient cutting of various complex curved surfaces and special-shaped materials.

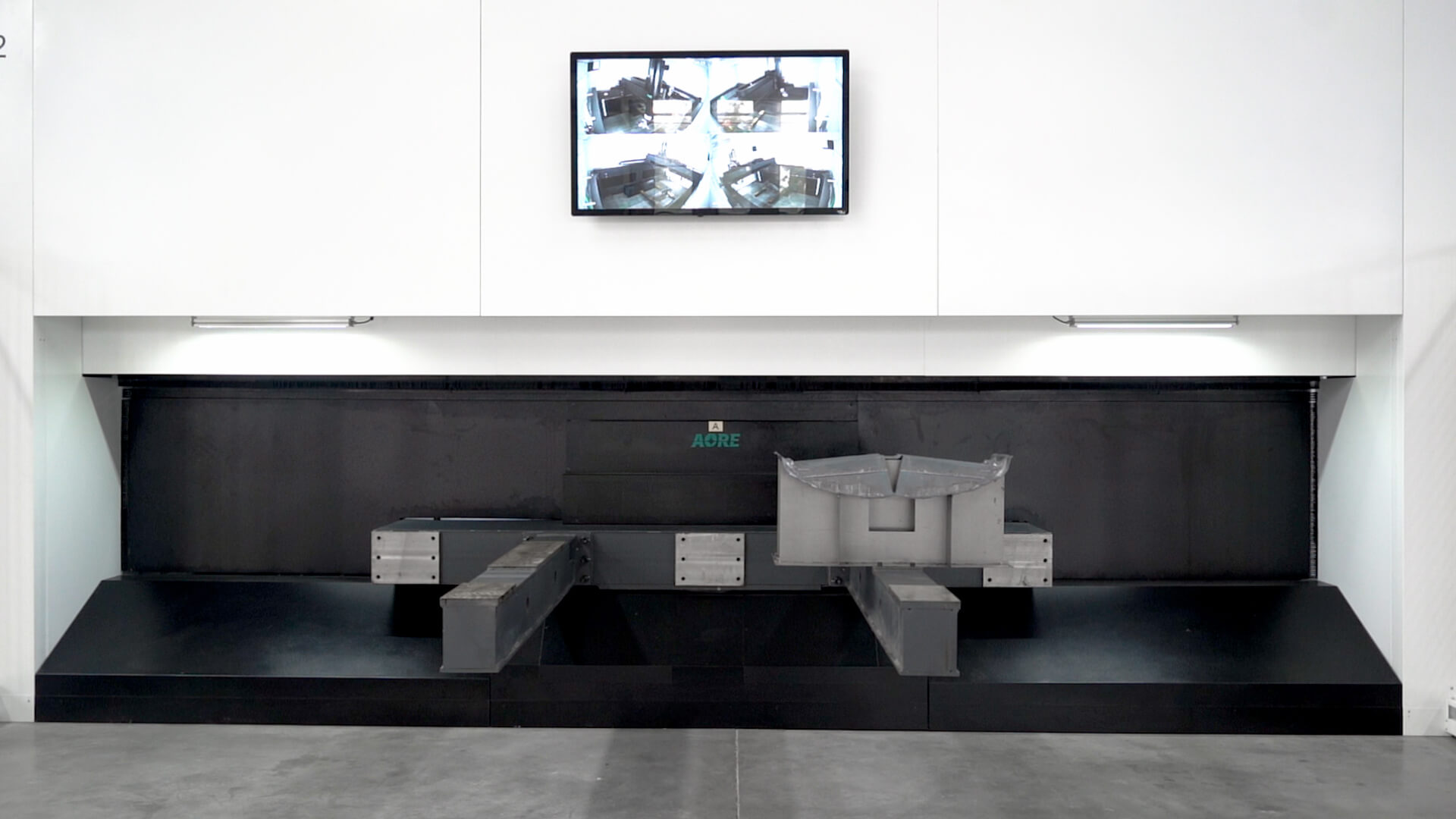

Twin-Station Design, Doubled Efficiency
Equipped with a high-precision, dual-station rotary table, it achieves station switching in ≤3 seconds and positioning accuracy of ±15". This enables simultaneous cutting and loading/unloading, effectively doubling processing efficiency.

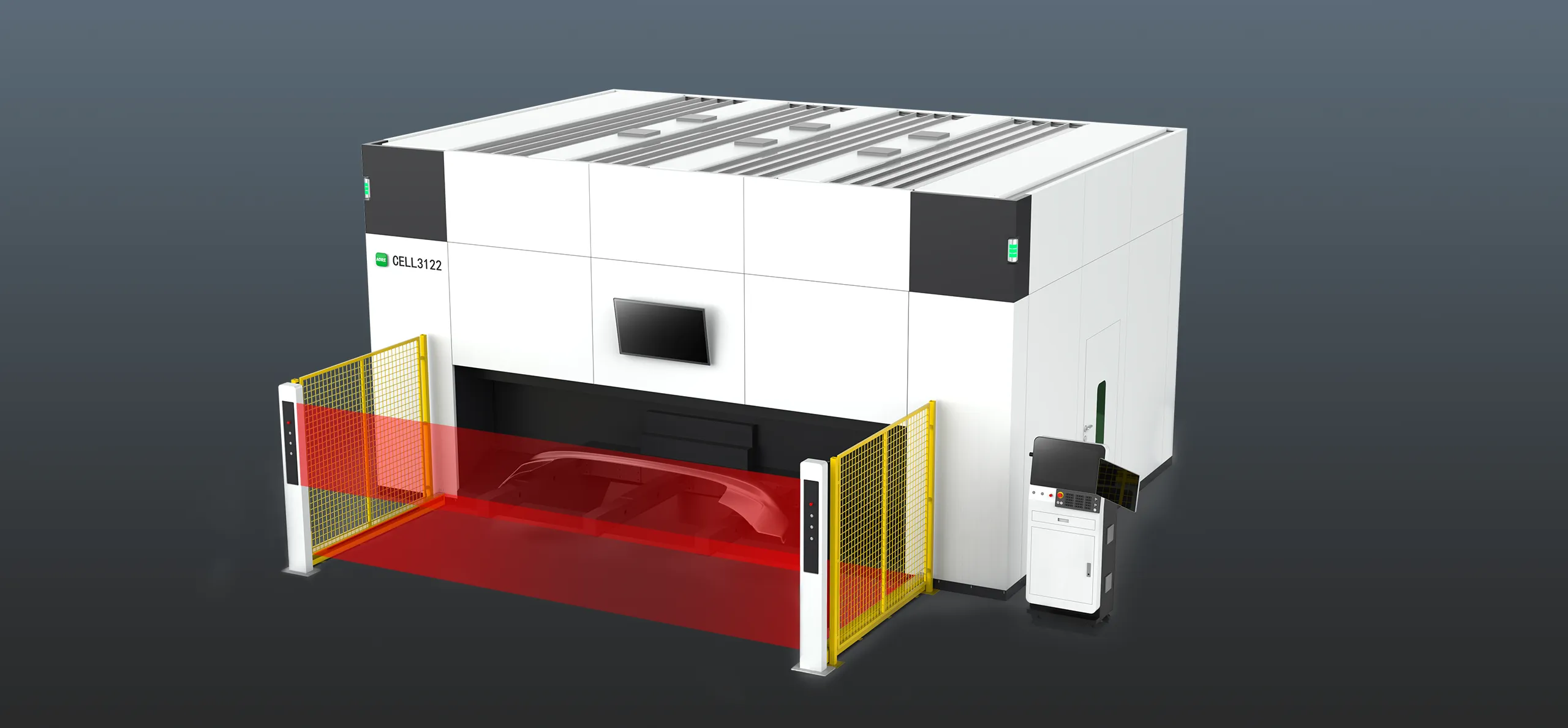

Multiple Protections for Safety and Compliance
The machine ensures safety through a fully enclosed protective cover and upper/lower dual safety light curtains, creating a comprehensive protection system. It is also equipped with an upper-press lower-suction dual dust removal system, which efficiently removes machining fumes and fully ensures personnel health and equipment safety.
Intelligent Auto-Focus for Adapting to Multi-Thickness Materials
The laser head features adaptive auto-focusing, automatically selecting the optimal focal position based on material thickness. This ensures continuous precision focusing during dynamic cutting, guaranteeing high-quality results across various working conditions.
Applications
Automotive Manufacturing
Aerospace
Construction Equipment
Mold & Die Making
Steel Structure
Technical Parameters
| Model | CELL3122 |
|---|---|
| Travel (Length * Width * Height ) | 3100mmx2200mmx680mm |
| Positioning accuracy | ±0.03mm |
| A-axis Travel | ±135° |
| C-axis Travel | Nx360° |
| Max.running speed | 140m/min |
| Max.acceleration | 1G |
