Steel Structure Laser Cutting Machine: Installation and Maintenance Guide
2026-10-29
Proper installation, professional commissioning, and regular maintenance are essential for the reliable operation of a steel structure laser cutting machine. Before installing the AORE GR-H series, prepare the workshop, utilities, and operating materials in advance. Following the recommended maintenance schedule can also help reduce unexpected downtime and maintain stable cutting performance.
1. How to Prepare for Steel Structure Laser Cutting Machine Installation
Before delivery, confirm the workshop layout, foundation, transportation route, utilities, and operator training plan.
Recommended preparation schedule:
10 weeks before installation: Confirm the machine layout, foundation, and transportation route.
8 weeks before installation: Arrange operators, maintenance personnel, and training.
4 weeks before installation: Prepare power connections and compressed air, where applicable.
2 weeks before installation: Prepare nitrogen, oxygen, cooling water, and compressed air according to the machine configuration.
The foundation must meet the requirements in the installation drawing for the specific model. The reference requirements include a foundation levelness of ±5 mm and a concrete thickness of at least 200 mm. Always follow the model-specific foundation drawing.
Allow sufficient clearance for operation and maintenance. As a reference, keep the left and rear sides of the machine more than 1,200 mm from workshop walls, and keep the laser source more than 1,000 mm from the wall.
2. Installation Environment and Utilities
Install the machine in a dry, well-ventilated indoor area. Avoid direct sunlight, strong localized airflow, solvent vapors, and other contaminants.
The reference operating temperature is -10°C to 40°C. When the machine is powered off, the ambient temperature should not fall below 4°C.
Prepare auxiliary gases and cooling water according to the cutting process and machine configuration:
Nitrogen: At least 99.999% purity for stainless steel cutting.
Oxygen: At least 99.9% purity for carbon steel cutting.
Compressed air: Clean, dry, and oil-free, meeting the machine's pressure and filtration requirements.
Cooling water: Use high-quality demineralized, distilled, or deionized water as specified in the equipment manual.
Hydraulic oil: No. 46 anti-wear hydraulic oil is a reference recommendation; confirm the requirement for the specific configuration.
Confirm all technical parameters against the relevant model documentation before installation.

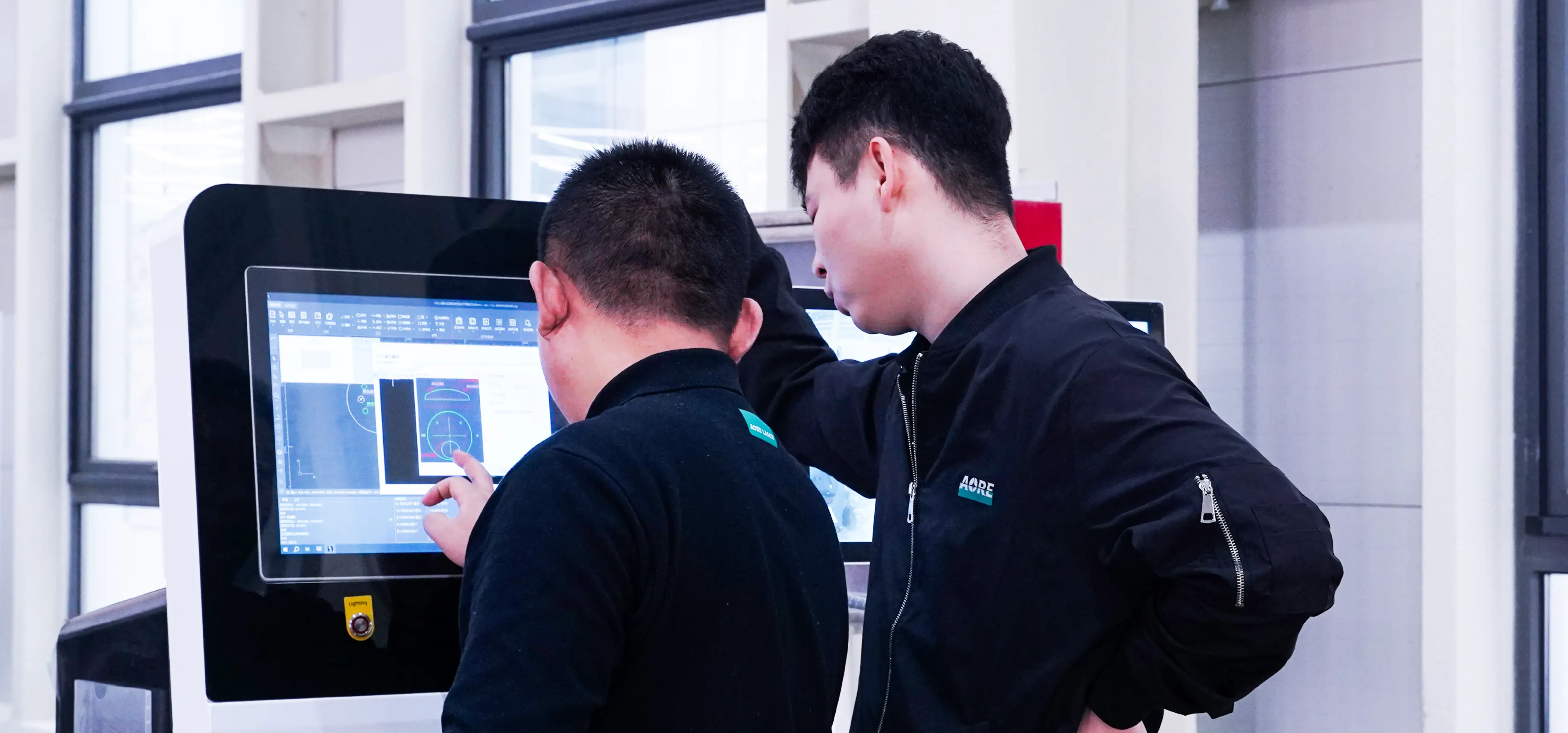

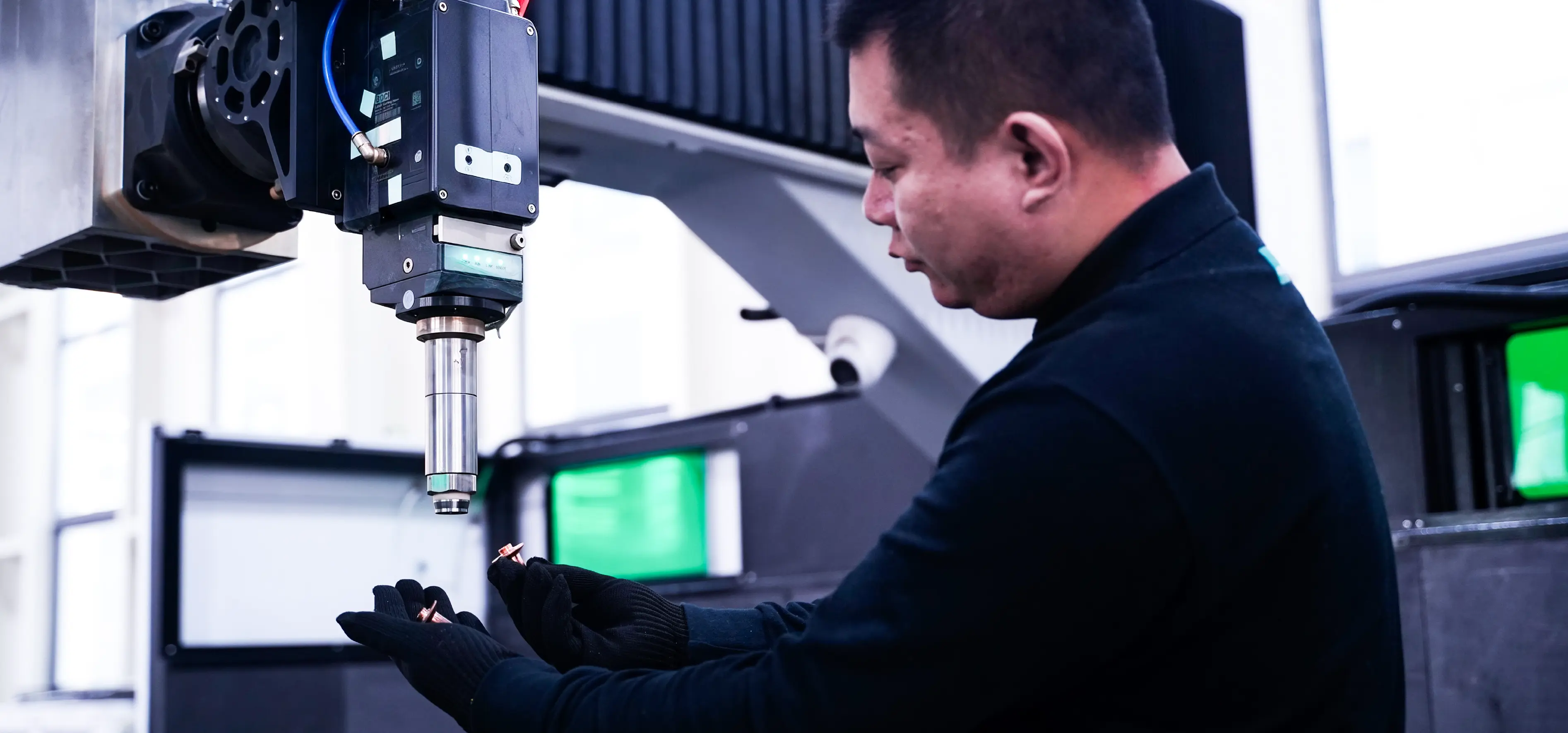

3. Commissioning and Safety
Initial commissioning and pre-production operation should be performed by AORE-authorized service personnel or other appropriately qualified professionals. Tasks may include machine positioning, leveling, calibration, securing, coolant preparation, connections, functional checks, and operator guidance.
Only trained and authorized personnel should operate, commission, or maintain the equipment. Contact AORE before relocating or dismantling the machine, as unauthorized movement or disassembly may affect the warranty.
Important: The GR-H fiber laser cutting machine is designed for cutting metal materials only. Always follow the operating instructions and permitted applications for the specific machine model.

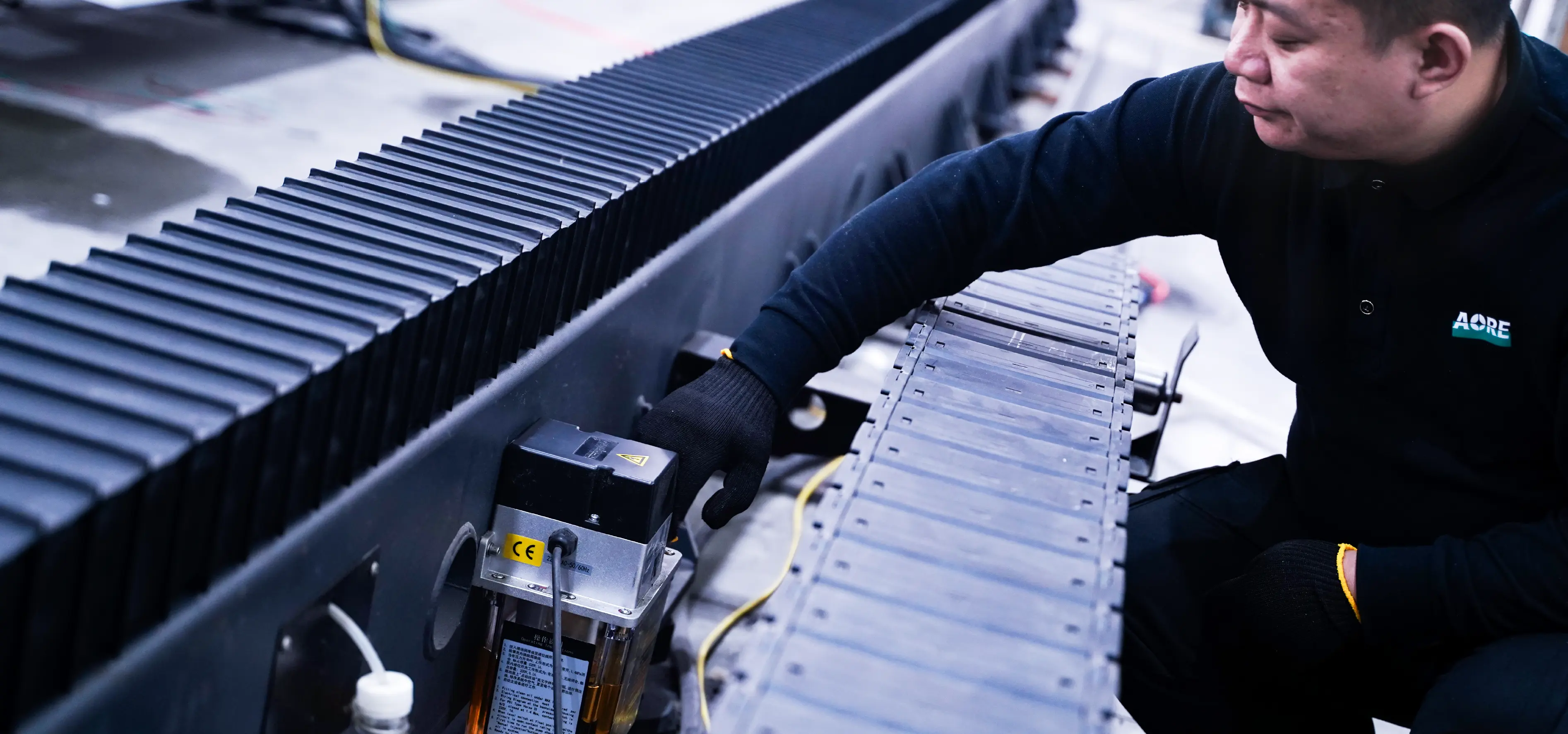

4. Steel Laser Cutting Machine Maintenance Checklist
Regular maintenance helps reduce unexpected downtime and supports stable cutting performance. The following schedule is a reference; always follow the latest maintenance manual for the specific model.
| Frequency | Maintenance Task |
| Every 8 hours | Check and clean dust cloths, scrap containers, and oil collection bottles. |
| Every 40 hours | Inspect pneumatic components, air lines, and water circulation lines; clean oil and dust from machine covers. |
| Every 100 hours | Check the automatic lubrication pump oil level, replenish if necessary, and inspect oil lines. |
| Every 500 hours | Clean X/Y/Z-axis guide rails and X/Y-axis racks and pinions; check automatic lubrication and clean the air outlets and chiller filter. |
| Every 1,000 hours | Clean the automatic lubrication pump inside and out, replace lubrication oil, and clean the lubrication system oil filter. |
| Every 6 months | Replace cooling water and clean the circulation system. |
Follow the maintenance manual for your exact model. Record maintenance activities and contact qualified service personnel when specialist adjustments or repairs are required.
5. Frequently Asked Questions
5.1 What should I prepare before installing a steel structure laser cutting machine?
Prepare the foundation, installation space, electrical supply, auxiliary equipment, cutting gases, and specified cooling water before delivery.
5.2 How often should a laser cutting machine be maintained?
Maintenance frequency depends on operating hours, working conditions, and machine configuration. Follow the manufacturer's maintenance schedule and record completed maintenance tasks.
5.3 Can I relocate or dismantle the machine myself?
Contact AORE before relocating or dismantling the equipment to ensure the work is properly assessed and carried out.
Conclusion
Proper installation, trained operation, and scheduled maintenance help keep a steel structure laser cutting machine running reliably. Before installation, confirm the foundation, utilities, and technical requirements for your specific GR-H model.
